Version 7 white screen
« on: 05. September 2019, 17:06:07 »
|
|
Working on a version 7 has the white screen.
3 different displays, no change,
New MCU, no change
checked and re-checked all solder connections.
NO Change.
Any ideas??
de Chuck WD8BXS
|
|
 Logged
|
Thanks,
De WD8BXS vy 73
|
|
|
SP9BSL
positron
alter Hase
Offline
Posts: 443
|
|
Re:Version 7 white screen
« Reply #1 on: 06. September 2019, 10:55:37 »
|
|
Hi Chuck,
what type of lcd connection you have: serial or parallel?
|
|
Logged
|
73 Slawek
|
|
|
peter_77
Urgestein
Offline
Posts: 735
THE mcHF and UHSDR forum !
|
|
Re:Version 7 white screen
« Reply #2 on: 06. September 2019, 16:47:53 »
|
|
Maybe the classical white screen FAQ will help.
https://www.amateurfunk-sulingen.de/forum/index.php?board=15;action=display;threadid=374
A lot of issues are discussed there as well as their solution.
Google translator might help here cause its more or less all in German...
The main question was not answered so far: What does the LEDs say ? According to their behavoiur you can "see" if the board performs a normal boot. That makes troubleshooting of just the LCD a lot easier.
If they do NOT show normal behaviour during boot your board maybe does not even boot correctly, which then leads to maybe a wrong or faulty bootloader or firmware.
UHSDR firmware and bootloader is recommended here of course.
|
| « Last Edit: 06. September 2019, 16:52:17 by peter_77 » |
Logged
|
|
|
|
WD8BXS
alter Hase
Offline
Posts: 286
|
|
Re:Version 7 white screen
« Reply #3 on: 06. September 2019, 18:19:40 »
|
|
I believe the Version 7 is a parallel display.
|
|
Logged
|
Thanks,
De WD8BXS vy 73
|
|
|
WD8BXS
alter Hase
Offline
Posts: 286
|
|
Re:Version 7 white screen
« Reply #4 on: 06. September 2019, 18:20:43 »
|
|
Radio seems to be working Ok, just white screen.
Using the latest bootloader and firmware.
|
|
Logged
|
Thanks,
De WD8BXS vy 73
|
|
|
WD8BXS
alter Hase
Offline
Posts: 286
|
|
Re:Version 7 white screen
« Reply #5 on: 07. September 2019, 22:39:48 »
|
|
Spent another hour today checking and re-checking connections.
All seem to be fine, I am stumped!
|
|
Logged
|
Thanks,
De WD8BXS vy 73
|
|
|
|
|
peter_77
Urgestein
Offline
Posts: 735
THE mcHF and UHSDR forum !
|
|
Re:Version 7 white screen
« Reply #7 on: 09. September 2019, 11:57:14 »
|
|
Chuck, you should definitely test that with an LCD from which you can be sure that it works. So one which has been successfully tested before. Its also always recommended to put the lcd on a socket.
One issue we found here with HOTMCU lcds as well was cold soldered pins. So maybe it helps to resolder the connection pins.
And doublecheck the correct position of the 0 ohm codimng Rs for parallel or serial operation.
|
|
Logged
|
|
|
|
|
|
WD8BXS
alter Hase
Offline
Posts: 286
|
|
Re:Version 7 white screen
« Reply #9 on: 09. September 2019, 22:34:44 »
|
|
I have 3 displays that are all showing white screen.
@ came with the radio from the customer, one was here new in the box.
Unfortunately, I do not have another radio to try the displays in.
Certainly a possibility that they all 3 could be bad.
|
|
Logged
|
Thanks,
De WD8BXS vy 73
|
|
|
peter_77
Urgestein
Offline
Posts: 735
THE mcHF and UHSDR forum !
|
|
Re:Version 7 white screen
« Reply #10 on: 10. September 2019, 14:18:59 »
|
|
Thats a bit too much of coincidence. I doubt that all 3 have problems. I would guess that there is maybe a resitor on the PCB missing or so or the wrong serial/parallel coding.
I could test them on an experimental UI here with sockets but i guess sending them from the US to EU is too much efford.
|
| « Last Edit: 10. September 2019, 14:19:55 by peter_77 » |
Logged
|
|
|
|
WD8BXS
alter Hase
Offline
Posts: 286
|
|
Re:Version 7 white screen
« Reply #11 on: 10. September 2019, 15:53:37 »
|
|
Thanks Peter, Yes a big mystery.
There are no resistors between the MCU and display, just direct connections.
I am looking for a local test person.
Chuck
|
|
Logged
|
Thanks,
De WD8BXS vy 73
|
|
|
WD8BXS
alter Hase
Offline
Posts: 286
|
|
Re:Version 7 white screen
« Reply #12 on: 25. October 2019, 19:48:49 »
|
|
Sent the displays to another user, and all 3 did not work.
Here is a pic of the back of the display that does not work.
|
Thanks,
De WD8BXS vy 73
|
|
|
WD8BXS
alter Hase
Offline
Posts: 286
|
|
Re:Version 7 white screen
« Reply #13 on: 25. October 2019, 19:49:26 »
|
|

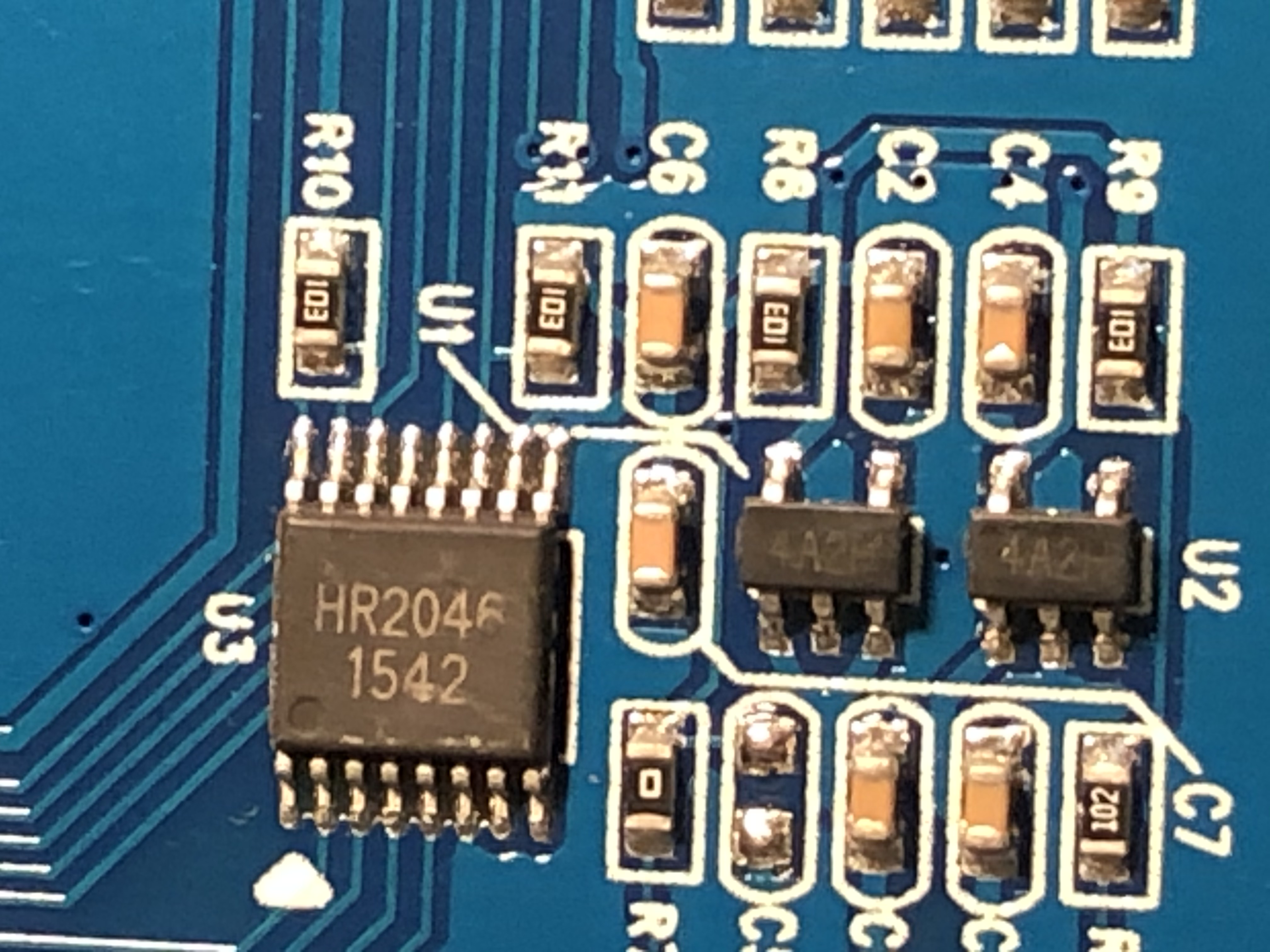

Here is the back of his display that works:
|
Thanks,
De WD8BXS vy 73
|
|
|
