IC7
« on: 11. February 2018, 13:58:04 »
|
|
About IC 7...

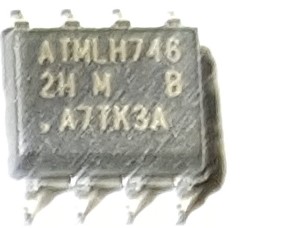

Is this IC supplied in bag 3 (photo) the same as the AT24CM02 specified in the BOM?
It ought to be as it is the only one matching the pin konfiguration. But, better safe than sorry...
How about the pin configuration?
/Ulf
SM0NOR
|
|
|
|
DF5LI
alter Hase
Offline
Posts: 371
Ich liebe meinen SParrow !
|
|
Re:IC7
« Reply #1 on: 11. February 2018, 15:15:53 »
|
|
And the little, barely visible dot is the pin 1-marker.
|
|
 Logged
|
73, Harri
|
|
|
|
|
sm0nor
schon länger dabei
Offline
Posts: 61
Ich liebe dieses Forum!
|
|
Re:IC7
« Reply #3 on: 11. February 2018, 19:59:29 »
|
|
and please leave R101 open
|
|
I soldered it, but I see now on the diagram that it is optional. So, depending on the type the 0 ohm resistor should be either in place or not in place. Correct? And for the IC type I have, it should not be in place? Correct?
/ulf
|
|
