Topic: Bauteilsuche für OV140 UI PCB (Read 3290 times)
|
|
dl7qk
schon länger dabei
 Offline
Posts: 88
Ich liebe dieses Forum!

|
 |
Bauteilsuche für OV140 UI PCB
« on: 29. January 2018, 16:44:48 »
|
|
Hallo,suche ASTX-H11 16 MHz TCXO 2,5ppm 3,2 x 2,5 mm TCXO_32X25
vy 73 dl7qk
|
|
 Logged
|
|
|
|
Paul C. H.
Neuling
Offline
Posts: 23
Ich liebe dieses Forum!
|
|
Re:Bauteilsuche für OV140 UI PCB
« Reply #1 on: 30. January 2018, 11:31:23 »
|
|
Hallo,suche ASTX-H11 16 MHz TCXO 2,5ppm 3,2 x 2,5 mm TCXO_32X25
vy 73 dl7qk
|
|

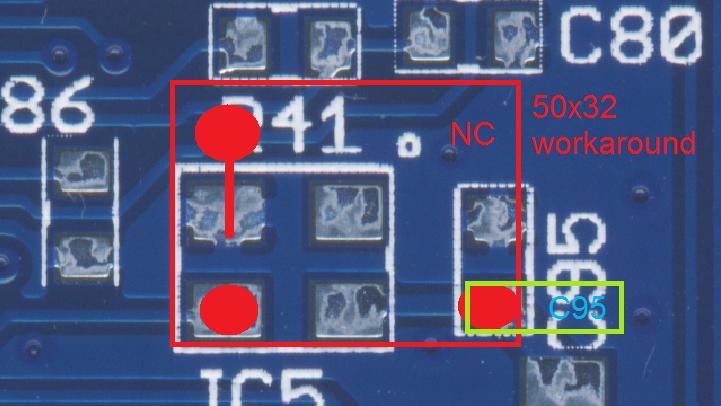

I don't have TXCO too, using a cheap 32x25 non-TCXO 16MHz for testing, ordered a 50x32 TCXO from element19 as workaround. (I try to attach a photo but sometime the bbs do not load it)
Paul
|
I understand only two German words.
with help of this forum, I often change from "g-e-t-l-o-s-t" to "g-e-l-ö-s-t".
what in front of me was feeling of "f-u-n-k", now it is a piece of almost working "f-u-n-k"
|
|
|
SP9BSL
positron
alter Hase
Offline
Posts: 443
|
|
Re:Bauteilsuche für OV140 UI PCB
« Reply #2 on: 30. January 2018, 11:37:32 »
|
|
Hi,
for me worked the mcHF solution: 2063959 from Farnell. Little bigger, but fits.
|
|
Logged
|
73 Slawek
|
|
|
|
|
Paul C. H.
Neuling
Offline
Posts: 23
Ich liebe dieses Forum!
|
|
Re:Bauteilsuche für OV140 UI PCB (TCXO)
« Reply #4 on: 30. January 2018, 11:59:25 »
|
|
Yes, Most of the time I verify before post, but forgot this time, ha ha ha.
Previously I suspect Google translate ate the attachment.
The workaround TCXO i will try is FOX924
result not know, still on the way.
|
|
Logged
|
I understand only two German words.
with help of this forum, I often change from "g-e-t-l-o-s-t" to "g-e-l-ö-s-t".
what in front of me was feeling of "f-u-n-k", now it is a piece of almost working "f-u-n-k"
|
|
|
Paul C. H.
Neuling
Offline
Posts: 23
Ich liebe dieses Forum!
|
|
Re:Bauteilsuche für OV140 UI PCB (TCXO)
« Reply #5 on: 30. January 2018, 12:25:46 »
|
|
Hi,
for me worked the mcHF solution: 2063959 from Farnell. Little bigger, but fits.
|
|
Yes, I ordered exactly this TCXO.
Thank you for LCD adapter layout.
|
|
Logged
|
I understand only two German words.
with help of this forum, I often change from "g-e-t-l-o-s-t" to "g-e-l-ö-s-t".
what in front of me was feeling of "f-u-n-k", now it is a piece of almost working "f-u-n-k"
|
|
|
dl7qk
schon länger dabei
Offline
Posts: 88
Ich liebe dieses Forum!
|
|
Re:Bauteilsuche für OV140 UI PCB
« Reply #6 on: 30. January 2018, 14:07:23 »
|
|
ich habe den betellt-Qantek Quarzoszillator QX533A16.00000B15M SMD HCMOS 16.000 MHz 5 mm 3.2 mm 1.3 m-und hoffe,daß es klappt.
v73-dl7qk
|
|
Logged
|
|
|
|
dl7qk
schon länger dabei
Offline
Posts: 88
Ich liebe dieses Forum!
|
|
Re:Bauteilsuche für OV140 UI PCB
« Reply #7 on: 31. January 2018, 08:33:22 »
|
|
jetzt gibt es de TCXO auch in der richtigrn Größr bei Völkner
Qantek Quarzoszillator QX333A16.00000B15M SMD HCMOS 16.000 MHz 3.2 mm 2.5 mm 1.2
v73 dl7qk
|
|
Logged
|
|
|
|
|
|
sm0nor
schon länger dabei
Offline
Posts: 61
Ich liebe dieses Forum!
|
|
Re:Bauteilsuche für OV140 UI PCB
« Reply #9 on: 04. February 2018, 19:06:18 »
|
|
I'm wondering about the 1uF's on the errata list that are recommended to change to smaller package. Do they have to be COG types? My local supplier stocks X5R, X7R and Y5V types.
73's Ulf
|
|
Logged
|
|
|
|
